Assembly Torque Arms
Click on the thumbnails below to open larger picture.
LOW TORQUE

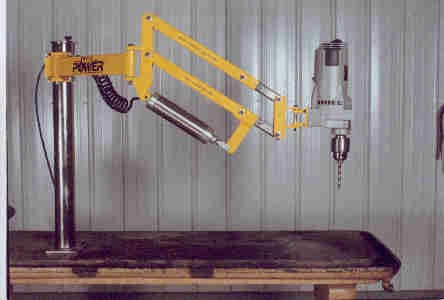

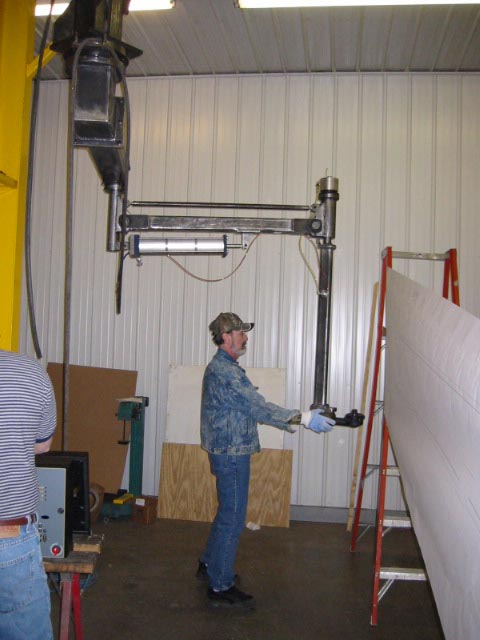

Bench and Overhead Mount Light Duty Torque Tube / Arms.
HIGH TORQUE

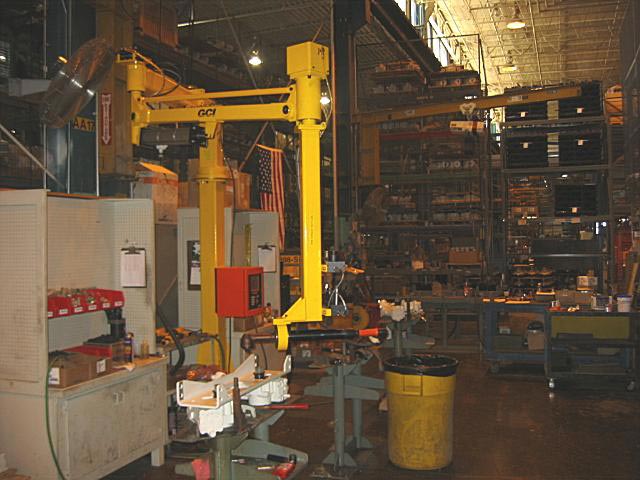

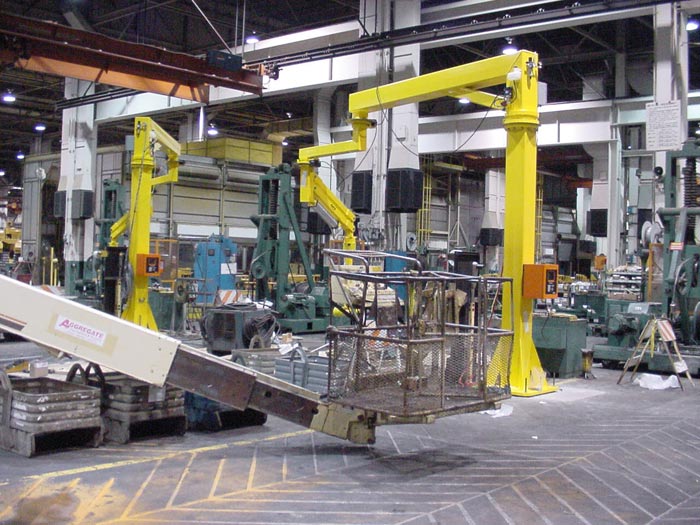

Floor Mount, Low Profile, Double Tool Torque Arm.

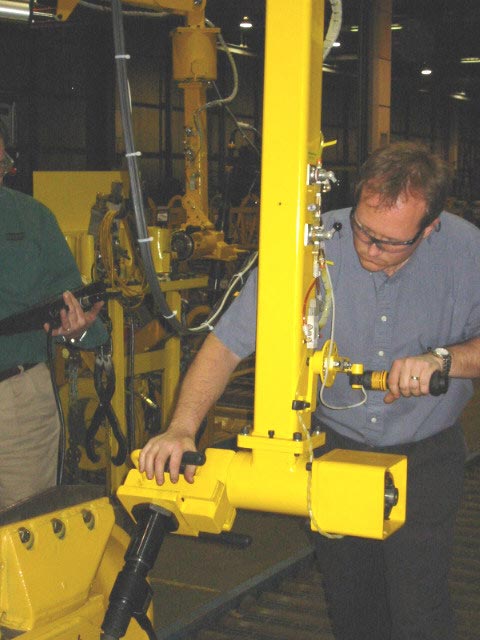

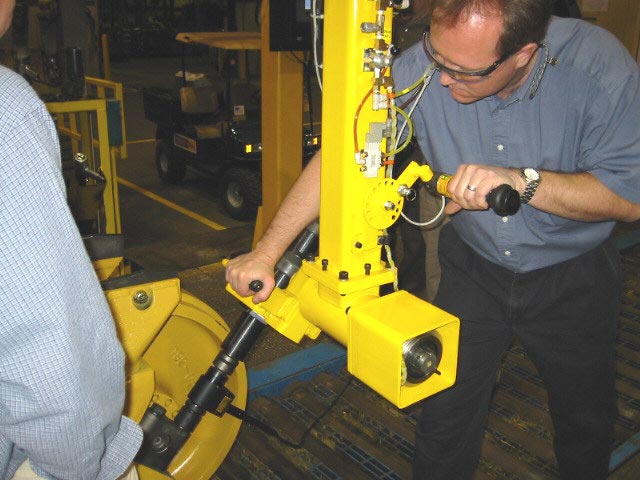

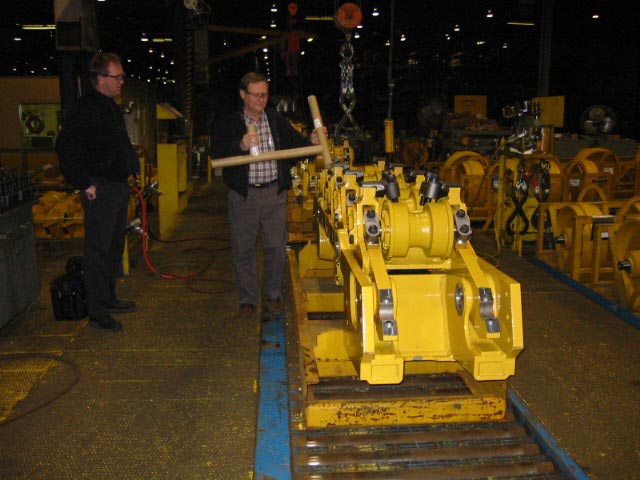

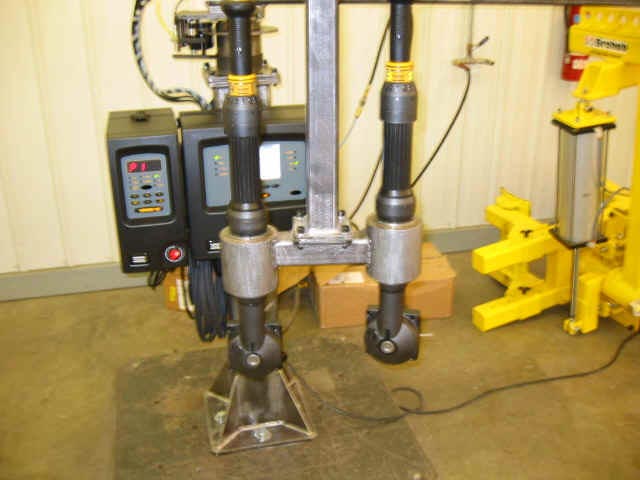

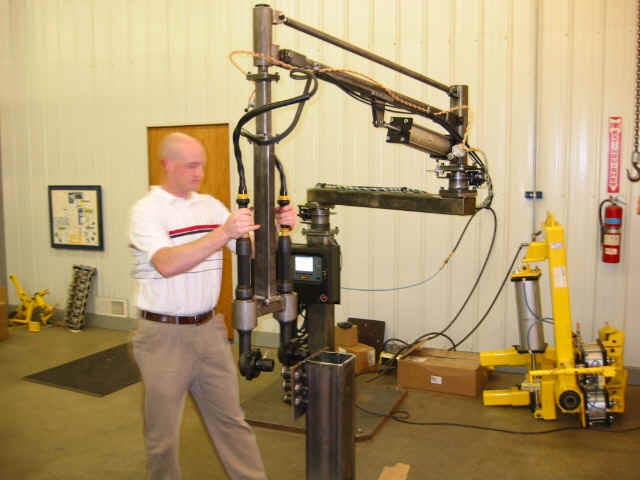

Double Tool Sleeves / Right Angle Tools (Pictured during customer run-off).

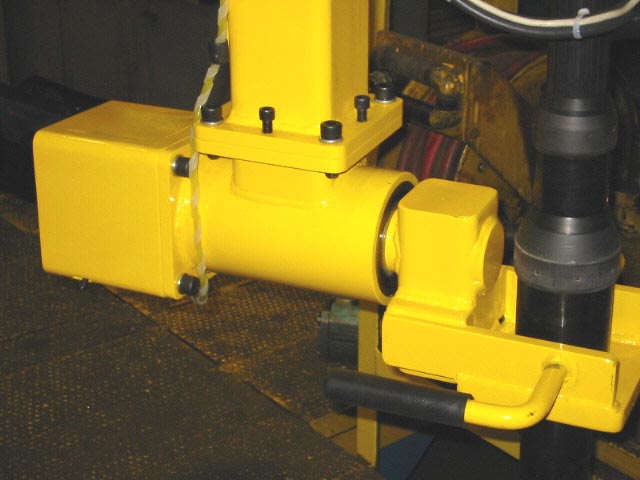

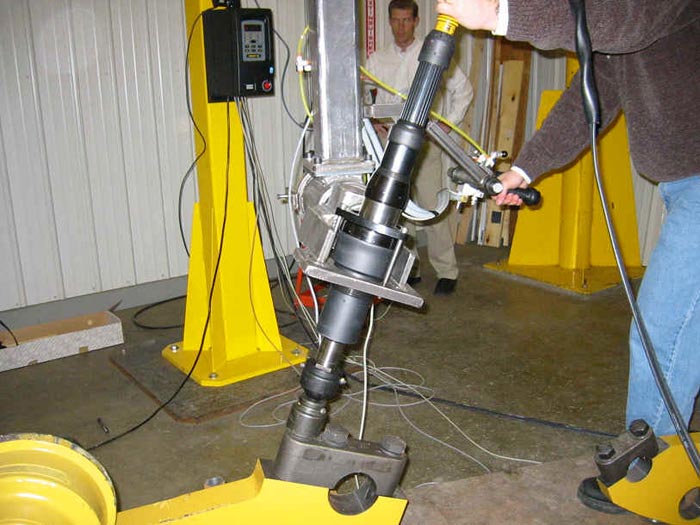

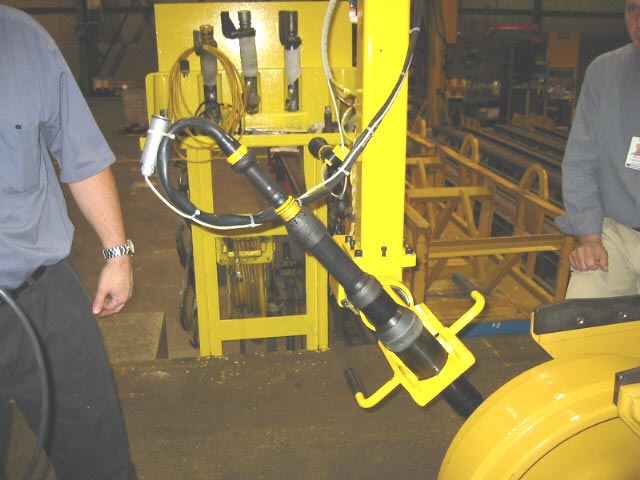

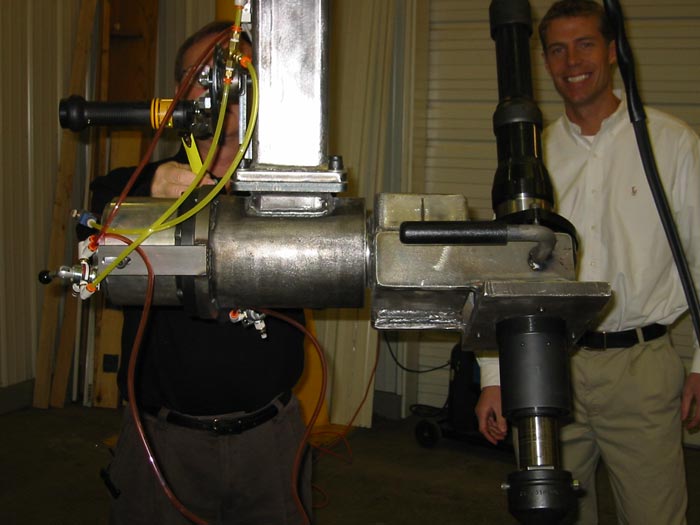

Multi-position Tool End Effectors - Discrete Positive Brake System: Allows Tool to Function in Multiple Planes (Horizontal, Vertical, and Angled).
3400 Ft. Lbs. X 20' Reach - Inline Tool Mount
600 Nm. X 12' Reach - Right Angle Tool Mount
4000 Ft. Lbs X 25' Reach - Inline Tool Mount
1000 Nm. X 12' Reach - Right Angle Tool Mount

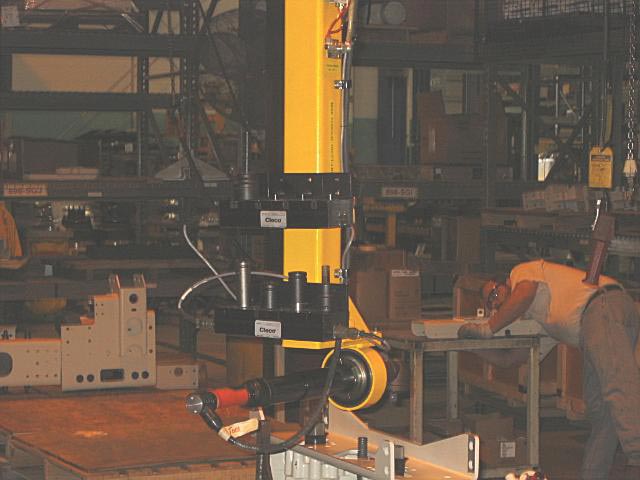

Customer Application Challenge: Ergonomic issues with existing heavy torque tooling and numerous torque tools to accomplish the application.
Solution: Reduced tooling to 4 DC tools to handle all torquing requirements, balanced (zero gravity) tooling and absorption of all torque reaction provided by GCI Torque Arms.

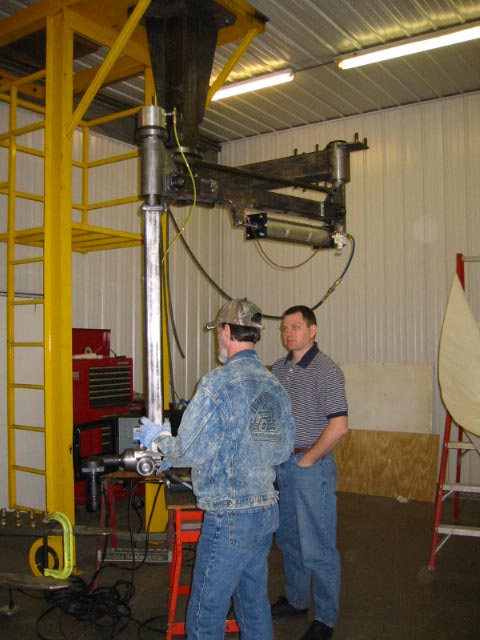

From Design Concept, to Customer Ron-Off at GCI's Facility in Garfield, MN, the Completed Equipment is Tested and Approved by You the Customer!

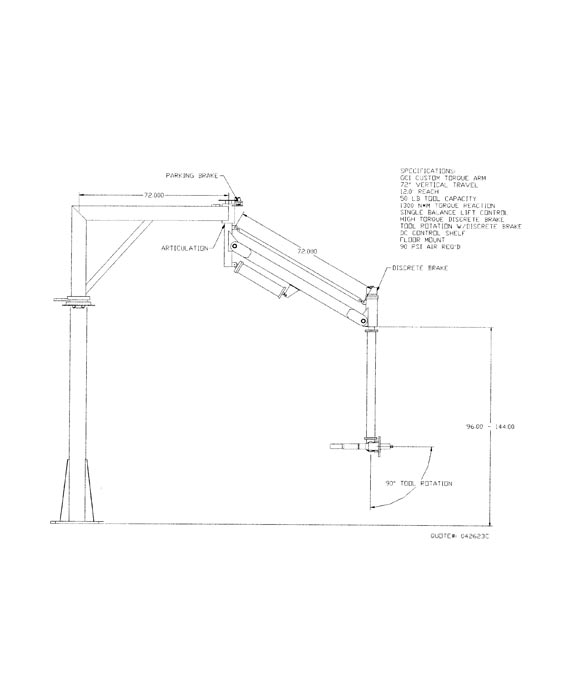

Design Concept:

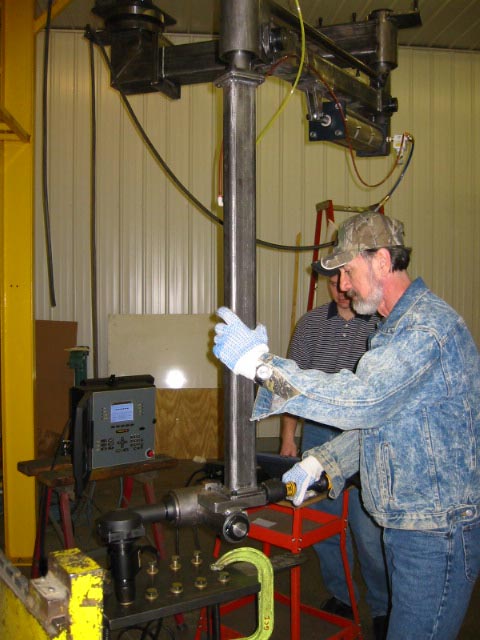

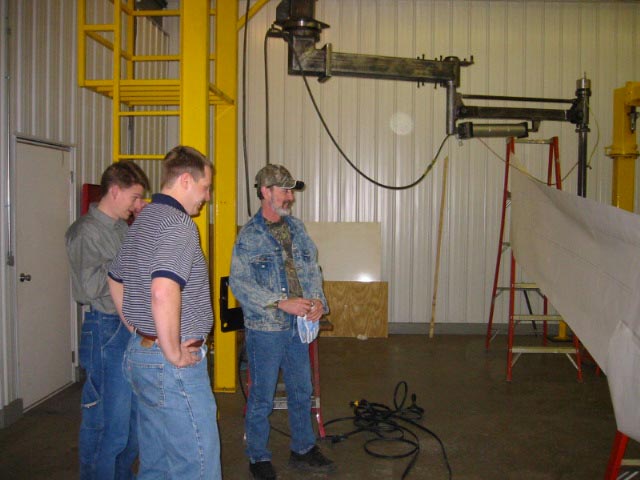

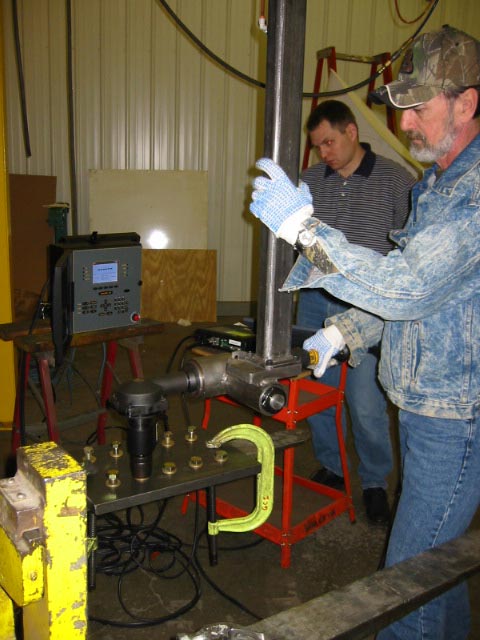

Customer Run-Off at GCI:

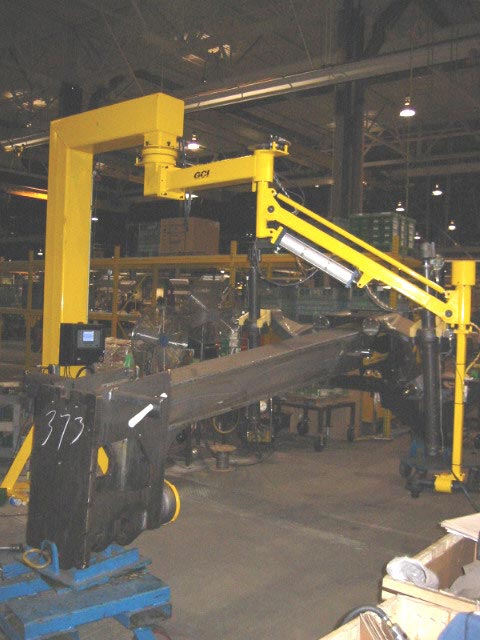

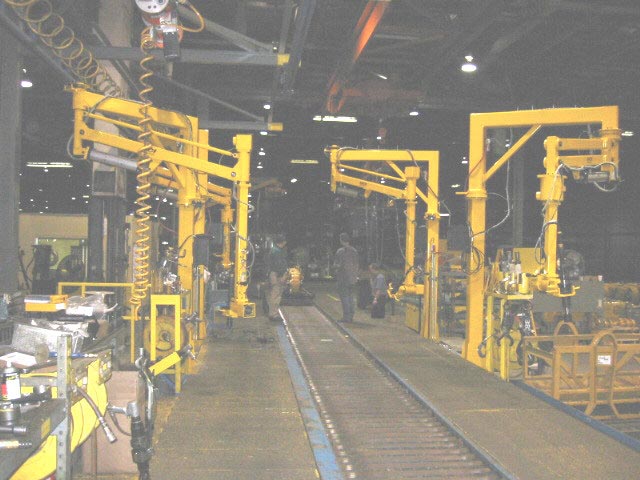

Final Install at Customers Facility:
Customer Application Challenge: Ergonomic issues with existing heavy torque tooling and numerous torque tools to accomplish the application.
Solution: Reduced tooling to 1 DC tool to handle all torquing requirements, balanced (zero gravity) tooling and absorption of all torque reaction provided by GCI Torque Arm.
From Design Concept, to Customer Ron-Off at GCI's Facility in Garfield, MN, the Completed Equipment is Tested and Approved by You the Customer!
Design Concept:

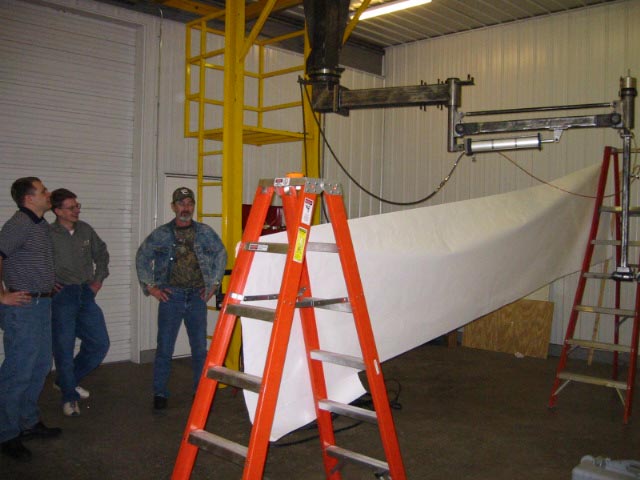

Customer Run-Off at GCI:
Final Install at Customers Facility:
